Description

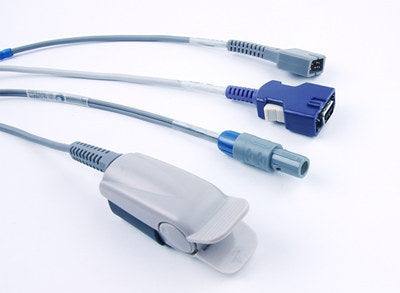

3m/ 9ft Long Cable, Directly Connect to Monitor
Reusable SpO2 sensor can be placed on the appropriate position such as finger which is used to be a transparent container containing hemoglobin and then the compatible patient monitors can collect the intesity of the light from PD&LED on the sensors through the human organization and calculate the pulse oxygen saturation, which can provide a continuous noninvasive pulse oxygen saturation measurement for clinical care.
SpO2 Sensor Types & Code
| 10: adult finger clip |
50: infant silicone |
|
20: adult silicone |
60: adult ear clip |
|
30: pediatric finger clip |
61: veterinary clip |
|
40. pediatric silicone |
80: neonate wrap sensor |
|
Compatible |
SpO2 Connect |
Comptibility |
Taijia Code |
Note |
| Philips |
|
C1 C3 M3 M4 MP20 MP30 MP40 MP50 MP70 MP80VM4 VM6 VM8 VIRDIA M2601A M3000A M3500B |
SZ00101 | 8 Pins |
| Philips |
|
78352A/C 78354A/C 78834C M1020A M1025A/B M1205A M1350B M1722A/B M1723A/B M2475B V24E M10A8B M10A8A |
SZ00111 | 12 Pins |
| Nellcor |  |
Artema Nihon Kohden Datascope GEMS Invivo Research Mennen Philips Siemens Spacelabs |
SZ00201 | 7 Pins |
|
Nellcor Oxi-Max |
 |
All Nellcor | SZ00211 |
9 Pins Oxi-Max |
| Nellcor |  |
Nellcor NPB-290/5 N-390 N-395 N-3000 N-390 N-395 N-3000; Nihon Kohden BSM-4104A BSM-4114A Colin BP88/306 |
SZ00221 | 14 Pins |
| Nellcor Oxi-Max |  |
OXI TECH N550 N595 N560 | SZ00231 |
14 Pins Oxi-Max |
| BCI |  |
BCI 3401 3304 3303 3302 3301 3300 |
SZ00301 | 9 Pins |
| CSI |  |
Alaris (IVAC) VitalCheck 4400 CSI 503DX 503 Spot 504DX 506 506DX |
SZ00401 | 6 Pins |
| GE Marquette |  |
Dash 3000/4000/5000 Solar 8000/8000M i/9500 Tram Module 451/451N/851/851N Eagle 1000/3000/ 4000 |
SZ00501 |
11 Pins Nellcor tech |
| GE Marquette |
Dash 3000/4000/ 5000 Tram 451N5/ 852N5 Solar 8000/ 8000M i9500 with Tram module 451N5/851N5 |
SZ00511 |
11 Pins OxiMax tech |
|
| GE Marquette |
Dash 3000/4000/5000 Solar 8000/8000Mi/ 9500 Tram Module 451M/ 851M CardioLab/ Mac-Lab Corometrics 159/259 |
SZ00521 |
11 Pins Masimo tech |
|
| Goldway |  |
GOLDWAY UT40 00A UT4000C 4000B; PACE TECH |
SZ00601 |
5 Pins single notch |
| Biolight | M6 M12 M69 | SZ00801 |
5 Pins single notch |
|
| Spacelabs |  |
1050 1600 1700 90369 90469 90496 Vltraview |
SZ00901 |
10 Pins |
| Mindray |  |
Mindray PM9000 |
SZ01001 |
5 Pins BCI module |
| Mindray |  |
Mindray PM7000 6201 8000, 9000 MEC 1200 VS800 MEC-1000 ; Kontron 71387840 7845; Goldway; Biocare BM9000; Creative PC9000 UP6000 |
SZ01011 |
6 Pins 40° |
| Mindray |
PM9000 9100 9200, PM6201 7000 8000, M1K0 M2K0 (before 2006, Jan.) |
SZ01021 |
6 Pins 40° Masimo tech |
|
| Mindray |  |
PM9000 express (Masim), PM8002 9201, PM6201 7000 8000, M1K0, M2K0 (since 2006), T8 |
SZ01031 |
6 Pins 60° Masimo tech |
| Mindray |  |
Mindray PM6000 | SZ01051 |
12 Pins Masimo tech |
| Nihon Kohden |  |
Bedside Monitor BSS 9800 Life scope S BSS 9510 Life scope M BSM 4101, 4103 4111, 4113 Life scope PBSM 5105, 5135 Life scope A BSM 2351, 2353 Life scope L BSM 2301,2303 Life scope I |
SZ01201 | 14 Pins |
| Nihon Kohden |  |
AL-800PA Module, BSM-1101 Life Scope EC, BSM-2101/2 Life Scope L, BSM-3101 Life Scope LC, BSM-7100/7200 Life Scope 8, BSM-8200/1 Life Scope 12, BSM-8301/2 Life Scope 9, NT3B, OLV-1100A, SM-8800 Life Scope 14 |
SZ04401 |
10 Pins |
| Ohmeda |  |
3740,3710,4700 OxiCap,5250RGM, Biox 3760,3700,3770,3775, (Rascal II), GE 7000 Series, Corometrics 511, TRAM A.R. Mennen Horizon XL800 (Ohmeda) |
SZ01301 | 7 Pins |
| GE Ohmeda |  |
GE Ohmeda TruSat™ pulse oximeter |
SZ01311 | 9 Pins |
|
Dolphin |
 |
2150, 2100compatible for 2G00751 |
SZ01401 | 14 Pins |
| Masimo |
Masimo all MDE EscortII OPT30 Prism GE Marquette Pro1000 V300; INVIVO T8; Schiller, ZOLL |
SZ01501 | 14 Pins | |
| Masimo |  |
Masimo Pronto-7, Rad-5, Rad-57, Rad-8, Rad-87, Radical-7; Medtronic Physio Control Lifepak 15 Zoll X Series |
SZ01511 | 20 Pins |
|
Comen PaceTech |
 |
Comen C50, Star5000B, Star5000C, Star8000, Star8000A, Star8000B, Star8000C, Star8000D, Star8000H, PaceTechTouch Screen Models Utech VS2000 Carewell CPM-9000W |
SZ01611 | 6 Pins |
|
Siemens Drager |
 |
SC6002XL 7000 SC8000 SC9000XL | SZ01701 | 7 Pins |
|
Siemens Drager |
 |
Cicero, Infinity Delta XL, Infinity Gamma XL, Infinity Kappa, Julian, Vitalert 1000 |
SZ01711 | 8 Pins |
| Datex |  |
AS/3,CS/3,AS/5 (Built in M moudule) CH/S, CH/RSCG/2S, CARDIOCAPIII, Capnomac Ultima Light monitor Satlite, Oscar (Datex tech) |
SZ01901 | 10 Pins |
| Datascope |  |
Datascope Accutorr 3/4 SAT Accutorr Plus, Passport Database SpO2 Compatible 0020-00-071-01 |
SZ02001 | 8 Pins |
| Invivo |  |
M12, M8 | SZ02501 |
Lemo 7 Pins Masimo tech |
| Invivo |
4500, 4500 Plus, Millennia, Omega 1445, Omni-Trak TVS, Sat Scout |
SZ02501 |
Lemo 7 Pins Nellcor tech |
|
| Bruker |  |
DC-3002, IH, M3 | SZ02601 | 12 Pins |
|
Goldway Creative |
 |
Goldway; Greative PC900; VP6000; EDAN Mq; Tom Ms-6-p; CONTEC; DHR 960 |
SZ02901 | 6 Pins |
| Critikon |  |
Critikon Dinamap 8700, 8710 Critikon Dinamap 8720 Plus, Critikon Dinamap 8721,9710,9700, Critikon Dinamap 8280 |
SZ03001 | Lemo 7 Pins |
|
CSI (Criticare) |
 |
CSI (Criticare Systems Intemational) Scholar, Poet (602-3A), 1100,581,508,507,507SD,504,503,501; Mindray 500A,508,509, Bird 4400 |
SZ03101 |
Lemo 5 Pins |
| Kontron |  |
7138,7840,7845, Minimon7137 Trakmon original OEM part number 0608010 |
SZ03701 | 12 Pins |
|
Lohmeier |
 |
Lohmeier M010, M011 original OEM number 6051-0000-035 |
SZ03801 | 6 Pins |
|
MEK |
 |
MP1000 NT | SZ04001 |
8 Pins CSI module |
| MEK |  |
MP-100, MP110, MP400, MP-500, MP600, MP1000 |
SZ04011 |
9 Pins CSI module |
| MEK |  |
MP1000 (Nellcor Module) | SZ04101 |
8 Pins Nellcor module |
|
Mennen |
 |
Nellcor OxiMax Vitalogik 4500 | SZ04201 |
12 Pins OxiMax tech |
| Mennen |  |
All | SZ04201 | 8 Pins |
| Mennen |  |
Horizon 2000 | SZ04301 | Lemo 10 Pins |
|
Nonin |
 |
8600 Series, 8500, 8700, 8800, 96, 009, 700 | SZ04501 |
Flat rectangular |
| Nonin |  |
Nonin Series 8000 J-3
Siemens Axiom Sensis XP |
SZ04511 | 7 Pins |
| Nonin |  |
8604, 8604D | SZ04521 | Lemo 6 Pins |
| Novametrix |  |
Novametrix 505,510,511,515B/C,520 7000,7100, Oxypleth; Spacelabs 90351-D/G, 90465, 90466, 90467, 90489, 90651-07/08 |
SZ04601 | 7 Pins |
| Schiller |  |
Argus LCM, Argus Pro, TM7 | SZ05201 |
7 Pins Masimo tech |
| Siemens |  |
Siemens Medical Sirecust 700 Sirecust 630 Sirem SpO2 Module |
SZ05301 | 10 Pins |
| Spacelabs |  |
90351-1/6; 90465; 0466; 90489; 90651A-08; 90651-A; IM77, 90308, PCScout | SZ05601 | 7 Pins |
| Biocare |  |
BP-12B, BP-12C | SZ05611 |
5 Pins Digital tech |
| Biocare |  |
BM-9000 | SZ06901 | 6 Pins 40° |
| Contec |
Creative PC9000, UP6000TOB-MED, TOM MS-6-P, EDAN M9, BIOCARE, BM9000 |
SZ06801 | 6 Pins 40° | |
| Contec |  |
Contec CMS8000, CMS60C digital PD output directly Biolight M6, M69 | SZ06811 | 5 Pins |
| CAS Medical |  |
Oscillomate 9002 9303, 9302S (Nonin) | SZ07001 |
7 Pins |
| CAS Medical |  |
740-750 | SZ07101 | 14 Pins |
|
Colin Omron |
BP88S (Non-Oximax) | SZ07111 |
14 Pins |
|
| IVY |
Vital-gurad, 450CN |
SZ07211 | 14 Pins |
