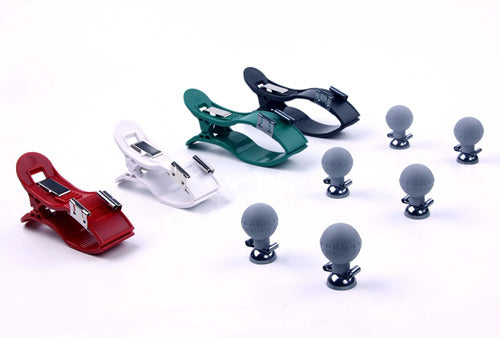

Taijia ECG Electrode

Fit for clinical ECG examination and dynamic/static cardiac monitoring while disposable ECG electrodes are medical sensors and compatible with all patient monitors in various occasions, the specifications are as following:

1. Exchange impedance ≤ 3KΩ;

2. DC offset voltage ≤ 100mv;

3.Inside noise ≤150μV;

4. Analog recovery performance(after defibrillation): Electrodes voltage ≤ 100mv (5S after discharging); The average rate of changes per 10s ≤ ± 1mv / s;

5. Analog AC resistance ≤ 3kΩ (after Defibrillation);

6. Bias current tolerance ≤ 100mv

Dispoable ECG Electrode with Wires

Compatible Brand	Connector	Decription	Taijia Code
Biosys Datascope IVY fit for Din type ECG leadwires		3-Lead 5-Lead	TJDE001
Philips fit for AAMI ECG leadwires		3-Lead 5-Lead	TJDE003
Datex-Ohmeda fit for DB ECG leadwires		3-Lead 5-Lead	TJDE005
Conmed fit for Conmed 2 pin (lock type) ECG leadwires		3-Lead 5-Lead	TJDE007
Neusoft Medical Systems fit for banana plug		3-Lead 5-Lead	TJDE009
GE-Marquette fit for VS ECG leadwires		3-Lead 5-Lead	TJDE012
Spacelabs		3-Lead 5-Lead	TJDE013
