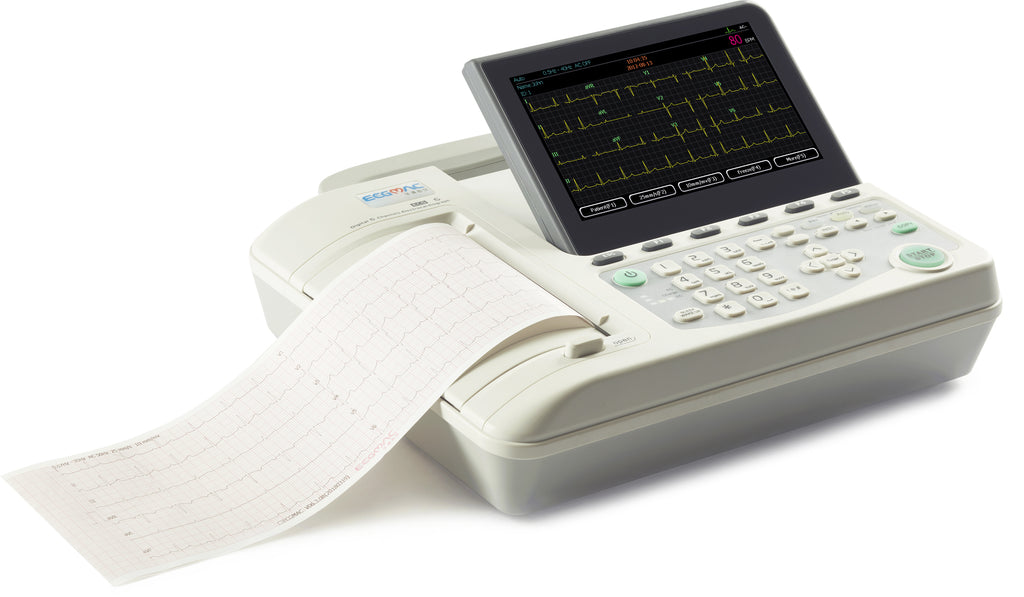

ECGMac EM-601 Six-channel ECG




Product Features

Simple and convenient operation, User friendly design, to bring more comfortable operating experience to medical staff

  • Large Foldable LCD Display, Clear and Intuitive

    7 inch TFT color display with 800×480 resolution, Background with grid, 12 leads ECG can be displayed on the same screen

  • Built-in Lithium battery, Large Storage Capacity

    Built-in rechargeable lithium high capacity battery, Local internal memory up to 1000 ECGs

  • Ergonomic Design

    Alpha-numeric keyboard with shortcut keys, efficient in operation, Portable handle, easy to carry

  • Peripherals and Communications

    Support peripherals* : SD Card/ Keyboard/ U-disk/ Barcode Scanner/ Wireless Network Adapter, Built-in high resolution thermal printer, Supports external USB Printer* via USB Port

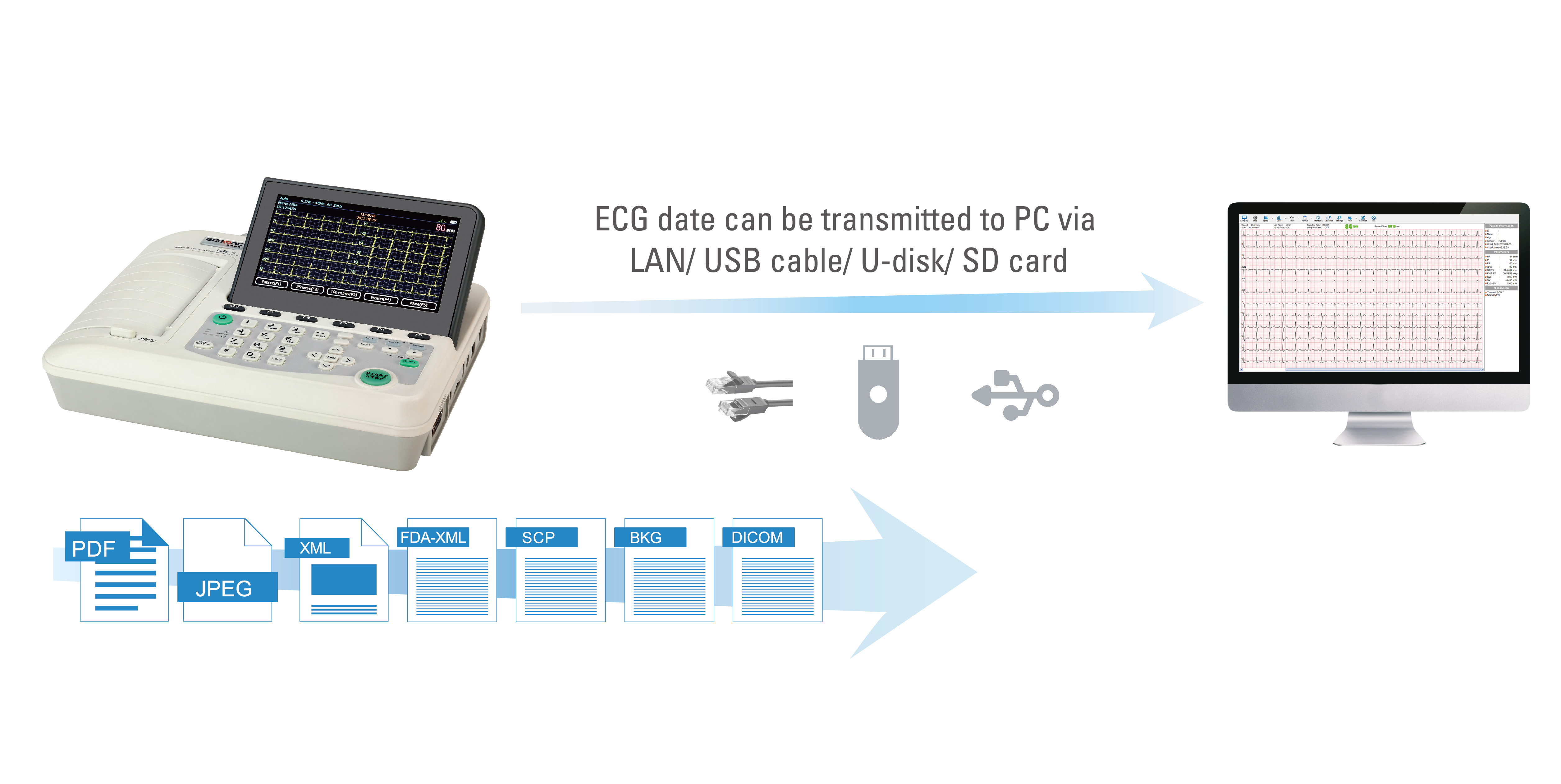

Seamless Connectivity


  • Multiple format reports export: PDF, JPG, BMP, XML, SCP*, DICOM, FDA-XML
  • ECG data can be imported to ECG device via SD card and U Disk
  • Data access with HIS/ PACS/ EMR system based on FTP/ DICOM*  standard protocol
  • Patient information can be retrieved from the worklist*

Powerful functions

  • Simultaneous 12 leads ECG acquisition and display
  • Automatic ECG measurements and interpretation
  • Support pacemaker detection
  • Comprehensive file management system to query, delete and edit patient data
  • Supports Auto, manual and rhythm mode
  • Lead off alarm
