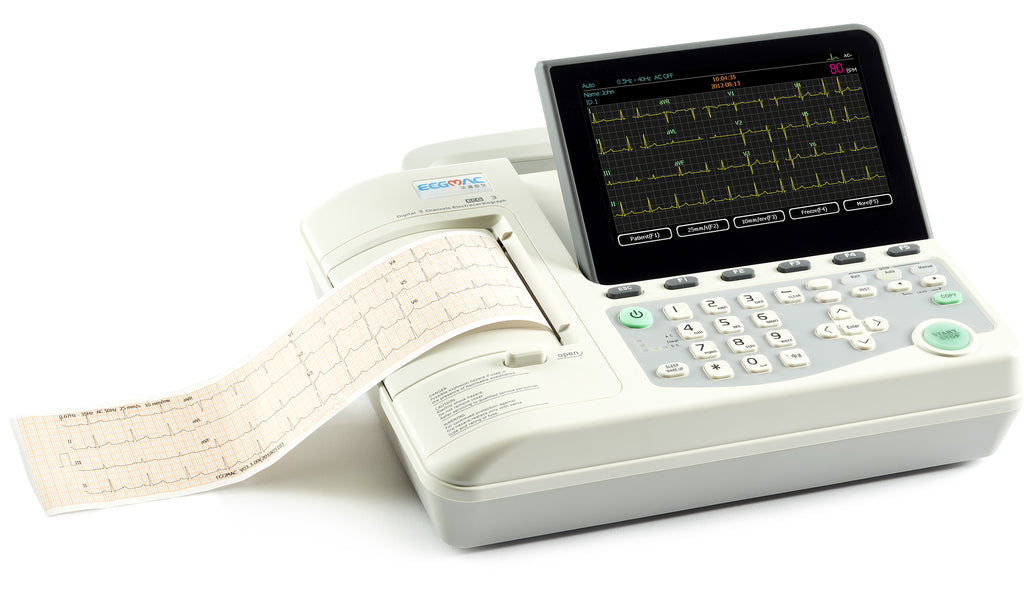

ECGMac EM-301 Three-channel ECG




Product Features

Simple and convenient operation, User friendly design, to bring more comfortable operating experience to medical staff


  • Large Foldable LCD Display, clear and intuitive

    7 inch TFT color display with 800×480 resolution, Background with grid, 12 leads ECG can be displayed on the same screen

  • Built-in Lithium battery, large storage capacity

    Built-in rechargeable lithium high capacity battery, Local internal memory up to 1000 ECGs

  • Ergonomic Design

    Alpha-numeric keyboard with shortcut keys, efficient in operation, Portable handle, easy to carry

  • Peripherals and Communications

    Support peripherals* : SD Card/ Keyboard/ U-disk/ Barcode Scanner/ Wireless Network Adapter, Built-in high resolution thermal printer, Supports external USB Printer* via USB Port

Software Function


  • Simultaneous 12 leads ECG acquisition and display
  • Automatic ECG measurements and interpretation
  • Support pacemaker detection
  • Multiple format reports export: PDF, JPG, BMP, XML, SCP*, DICOM, FDA-XM*L
  • Support Lead off alarm
