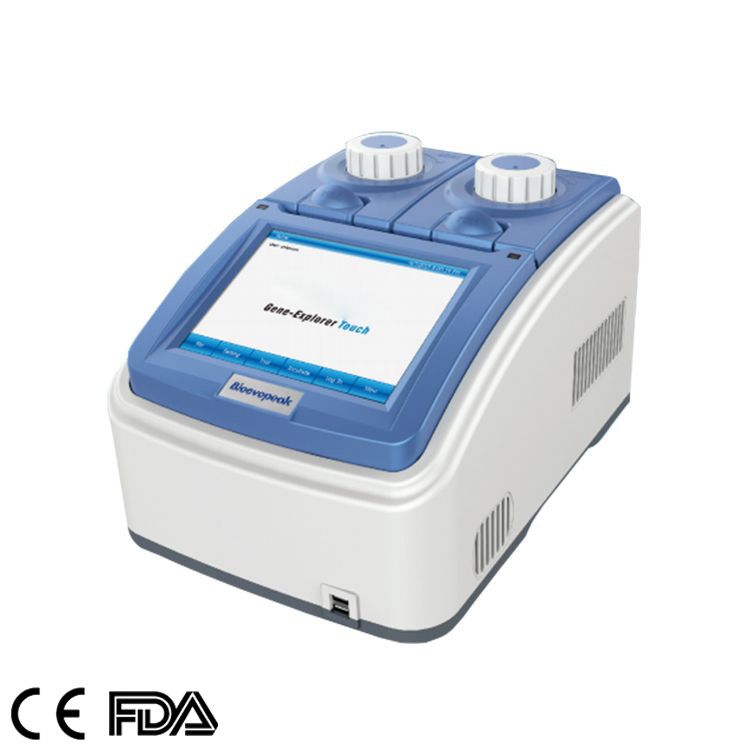

Bioevopeak PCR-482 Thermal Cycler




PCR-482 thermal cycler uses customized Marlow (US) peltier. Its max. ramping rate is 5 ℃/s and cycle times is more than 1,000,000. The product combines a variety of advanced technologies:Windows system, color touch screen; independently controlled 4 temperature zones; PC on-line function; printing function; big storage capacity and support USB device. All above functions allow PCR’s excellent performance and meet higher experiment’s need.


  • 8 pcs long service life Peltier heating units and form 4 circuits to control 4 temperature zones and allow double block gradient function;
  • Reinforcedaluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance;
  • High heating and cooling rate, ramping rate 5 C/s, can save yourprecious time,Two blocks independently controlled and can run 2 different PCR programs simultaneously;
  • Steplessadjustable hot lid with pressure-protection, fit tubes of different heights to avoid tube melt and evaporation;Windows interface, 8*(800×600,16 colors) TFT color touch-screen with graphical display provides easy use for setting up and monitoring.
  • Built-in 11 standard program file template,can quickly edit the required
  • Folder management, user can build directory,;
  • The running program and left time can be displayed in real time,allow to edit file when program is running;
  • One-click quick incubation function can meet experiment’s needs such as denaturation,enzyme cutting/enzyme-link and ELISA;
  • Internal flash memory for 10000 typical PCR files in free configurablefolders
  • Hot lid temperature and hot lid work mode can be set to meet different experiment’s need:
  • Automaticrestart after power failWhen power is restored it can continue to run unfinished program;
  • GLPreport records every step to provide accurate data support for experiment result analysis;
  • User Login Management, three-tier permission, password protection function to ensure data security;
  • Compatible with devices such as Mouse and Keyboard and capable totransfer data and perform software updates via USB Drive;
  • Support USB and LAN to update software;
  • One computer can control many sets of PCR via network connection;
  • Support email-alert function when experiment is over.
